光学仪器  2023, Vol. 45 Issue (1): 73-79 PDF

Simulation of optical fiber coating for OFDR temperature sensing
WANG Lujun, XIN Wei, LIU Yu, ZHANG Xuedian, LIU Xuejing
School of Optical-Electrical and Computer Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China
Abstract: In order to design coated fiber for optical frequency domain reflectometer (OFDR) temperature sensing, improve the temperature sensitivity of OFDR and increase its applicable scenarios, this paper theoretically analyzes and simulates the effects of one and two layers of coating on the temperature sensitivity of Rayleigh frequency shift in single-mode fiber. Firstly, the effects are analyzed by using the Lame solution theory in term of the geometrical, thermal and mechanical properties of the coating. Secondly, a simplified solution with only one layer of coating is proposed based on the relationship of axial strain in optical fiber caused by temperature and the force balance between optical fiber and one layer of coating. Finally, the temperature sensitivity of Rayleigh frequency shift of the one-layer and two-layer coated optical fiber is simulated on the basis of the established theoretical model. The results show that the sensitivity increases with the increase of Young's modulus, radius and thermal expansion coefficient of the outer coating. However, it is almost independent of Poisson's ratio of the coating. The results of this paper could broaden the application of OFDR in high temperature sensitive and cryogenic temperature scenarios.
Key words: fiber    coating    optical frequency domain reflectometer    temperature sensitivity

1 热应变理论

 $\dfrac{{\text{δ}}_{\lambda} }{{\lambda }_{c}}=-\dfrac{{\text{δ}} \upsilon }{{\upsilon }_{c}}={K}_{T}{\text{δ}}_ T+{K}_{\varepsilon }{\text{δ}} {\varepsilon }_{a}$ (1)

${C}_{T}={\lambda }_{c}{K}_{T}$ ${{C}_{\varepsilon }=\lambda }_{c}{K}_{\varepsilon }$ ，由式（1），可以定义瑞利频移温度灵敏度为

 $\begin{array}{c}\dfrac{{\text{δ}}_\lambda }{{\text{δ}}_ T}={C}_{T}+{C}_{\varepsilon }\dfrac{{\text{δ}} {\varepsilon }_{a}}{{\text{δ}}_ T}\end{array}$ (2)

 $\begin{split} \left[\begin{array}{c}\text{δ} {\sigma }_{r}^{i}\\ \text{δ} {\sigma }_{\theta }^{i}\\ \text{δ} {\sigma }_{a}^{i}\end{array}\right]=&\left[\begin{array}{c}{\lambda }_{i}+2{\mu }_{i}\\ {\lambda }_{i}\\ {\lambda }_{i}\end{array}\begin{array}{c}{\lambda }_{i}\\ {\lambda }_{i}+2{\mu }_{i}\\ {\lambda }_{i}\end{array}\begin{array}{c}{\lambda }_{i}\\ {\lambda }_{i}\\ {\lambda }_{i}+2{\mu }_{i}\end{array}\right] \times\\ & \left[\begin{array}{c}\text{δ} {\varepsilon }_{r}^{i}-{\alpha }_{i} \text{δ}_T\\ \text{δ} {\varepsilon }_{\theta }^{i}-{\alpha }_{i} \text{δ}_T\\ \text{δ} {\varepsilon }_{a}^{i}-{\alpha }_{i} \text{δ}_T\end{array}\right] \end{split}$ (3)

 $\begin{array}{c}{\lambda }_{i}=\dfrac{{\eta }_{i}{E}_{i}}{\left(1+{\eta }_{i}\right)\left(1-2{\eta }_{i}\right)}\text{，}{\mu }_{i}=\dfrac{{E}_{i}}{2\left(1+{\eta }_{i}\right)}\end{array}$ (4)
 $\begin{array}{c}\text{δ} {\varepsilon }_{r}^{i}={U}_{i}+\dfrac{{V}_{i}}{{r}^{2}}\text{，}\text{δ}{\varepsilon }_{\theta }^{i}={U}_{i}-\dfrac{{V}_{i}}{{r}^{2}}\text{，}\text{δ} {\varepsilon }_{a}^{i}={W}_{i}\end{array}$ (5)

 $\begin{array}{c}\text{δ} {\sigma }_{r}^{i}\left({r}_{i}\right)=\text{δ} {\sigma }_{r}^{i+1}\left({r}_{i}\right)\quad \left(i=0, 1,\cdots ,m-1\right)\end{array}$ (6)
 $\begin{array}{c}\text{δ} {u}_{r}^{i}\left({r}_{i}\right)=\text{δ} {u}_{r}^{i+1}\left({r}_{i}\right)\quad \left(i=0, 1,\cdots ,m-1\right)\end{array}$ (7)
 $\begin{array}{c}\text{δ} {\sigma }_{r}^{m}\left({r}_{m}\right)=0\end{array}$ (8)
 $\begin{array}{c}\displaystyle\sum _{i=0}^{m}\text{δ} {\sigma }_{a}^{i}\cdot {A}_{i}=0\end{array}$ (9)
 $\begin{array}{c}\text{δ} {\varepsilon }_{a}^{0}=\text{δ} {\varepsilon }_{a}^{1}=\cdot \cdot \cdot =\text{δ} {\varepsilon }_{a}^{m}=\text{δ} {\varepsilon }_{a}\end{array}$ (10)

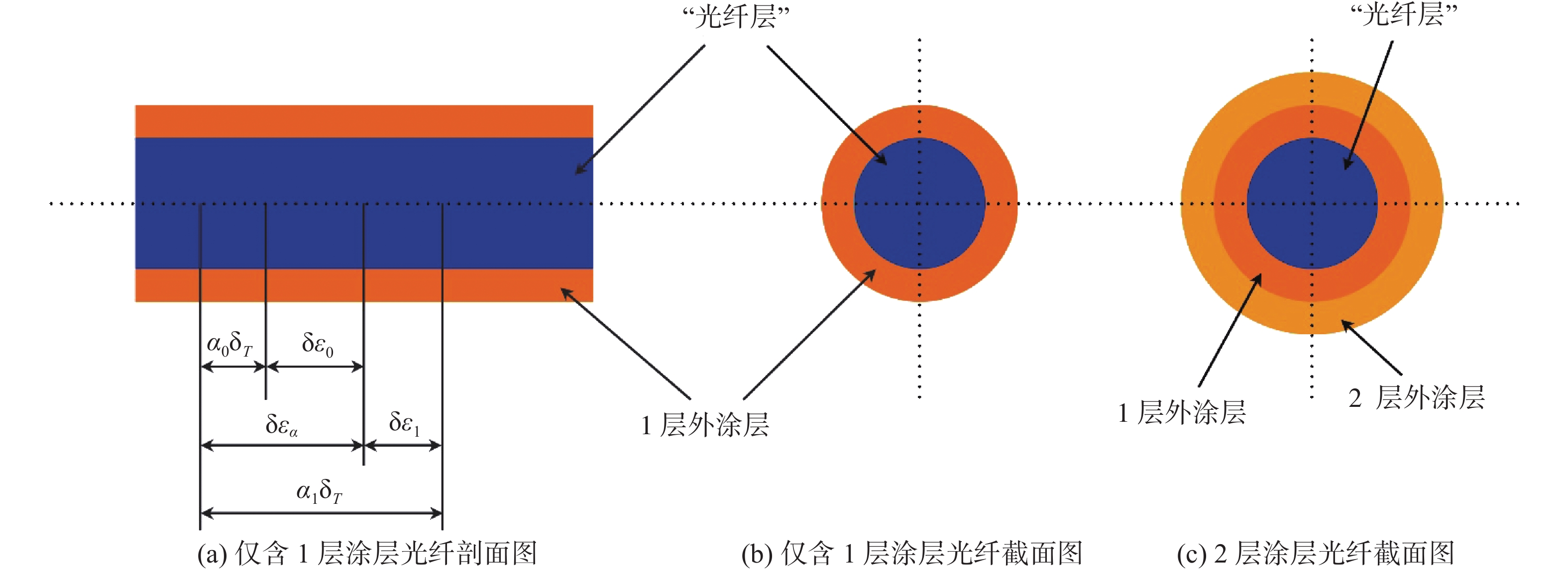

 图 1 涂层光纤示意图 Figure 1 Schematic diagram of coated fiber

 $\begin{array}{c}{F}_{0}={E}_{0}{A}_{0}\text{δ} {\varepsilon }_{0}\end{array}$ (11)
 $\begin{array}{c}{F}_{1}={E}_{1}{A}_{1}\text{δ} {\varepsilon }_{1}\end{array}$ (12)
 $\begin{array}{c}{F}_{0}={F}_{1}\end{array}$ (13)

${F}_{0}$ ${F}_{1}$ 带来的应变关系由图1（a）可得

 $\begin{array}{c}\text{δ} {\varepsilon }_{a}={\alpha }_{0}\text{δ}_ T+\text{δ} {\varepsilon }_{0}={\alpha }_{1}\text{δ}_ T-\text{δ} {\varepsilon }_{1}\end{array}$ (14)

 $\begin{array}{c}\dfrac{\text{δ} {\varepsilon }_{a}}{\text{δ}_ T}=\left(\dfrac{{E}_{1}{A}_{1}}{{E}_{1}{A}_{1}+{E}_{0}{A}_{0}}\left({\alpha }_{1}-{\alpha }_{0}\right)+{\alpha }_{0}\right)\end{array}$ (15)

 $\begin{array}{c}\dfrac{\text{δ} \lambda }{\text{δ}_ T}={C}_{T}+{C}_{\varepsilon }\left(\dfrac{{E}_{1}{A}_{1}}{{E}_{1}{A}_{1}+{E}_{0}{A}_{0}}\left({\alpha }_{1}-{\alpha }_{0}\right)+{\alpha }_{0}\right)\end{array}$ (16)

2 仿真结果及讨论

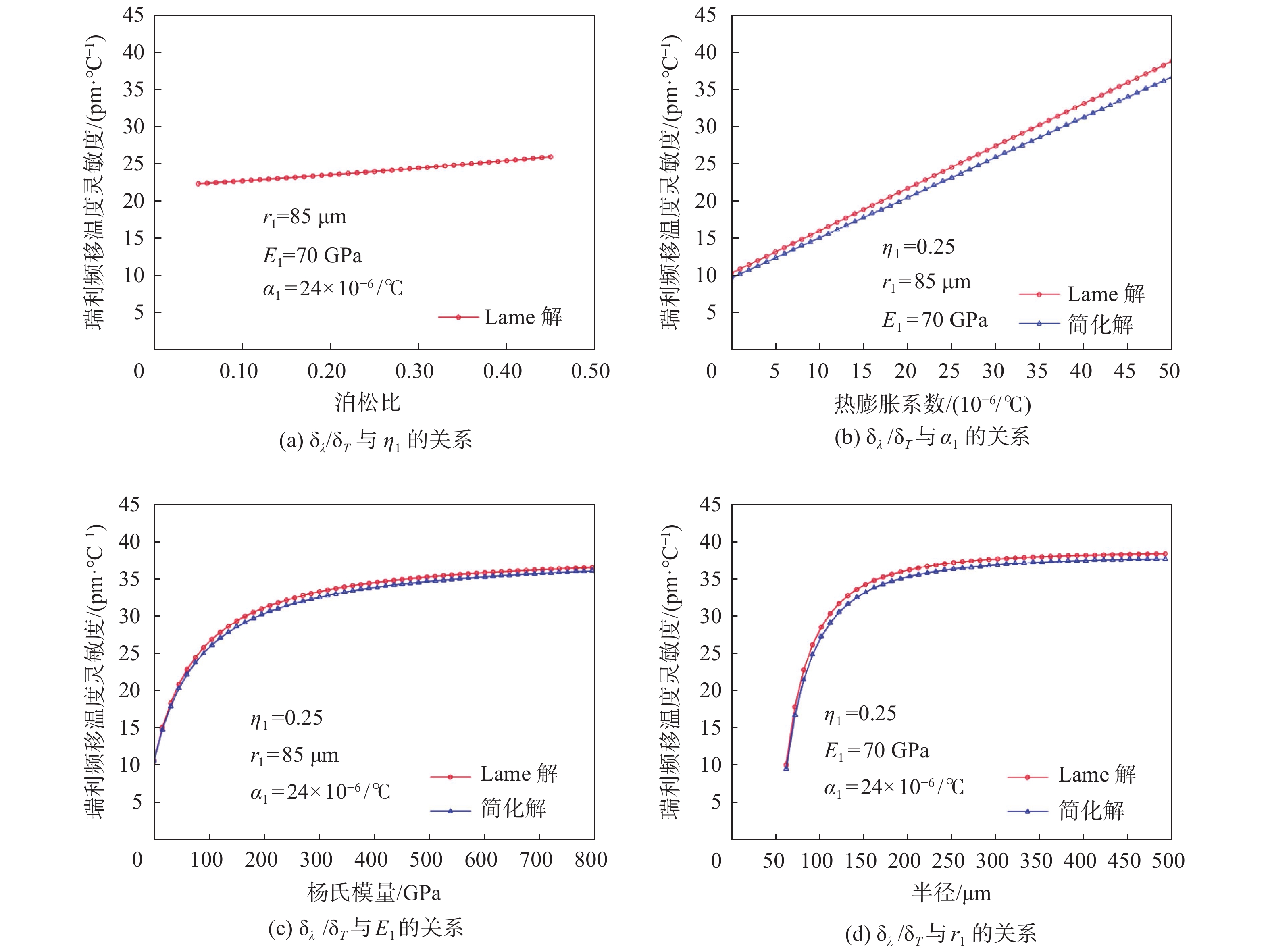

 图 2 瑞利频移温度灵敏度（ $\text{δ}_ \lambda /\text{δ}_ T$ ）与 1 层外涂层参数（ ${\eta }_{1}$ ， ${\alpha }_{1}$ ， ${E}_{1}$ ， ${r}_{1}$ ）的关系 Figure 2 Relationship between temperature sensitivity of Rayleigh frequency shift（ $\text{δ}_ \lambda /\text{δ}_ T$ ）and the external first coating parameters （ ${\eta }_{1}，{\alpha }_{1}，{E}_{1}，{r}_{1}$ ）

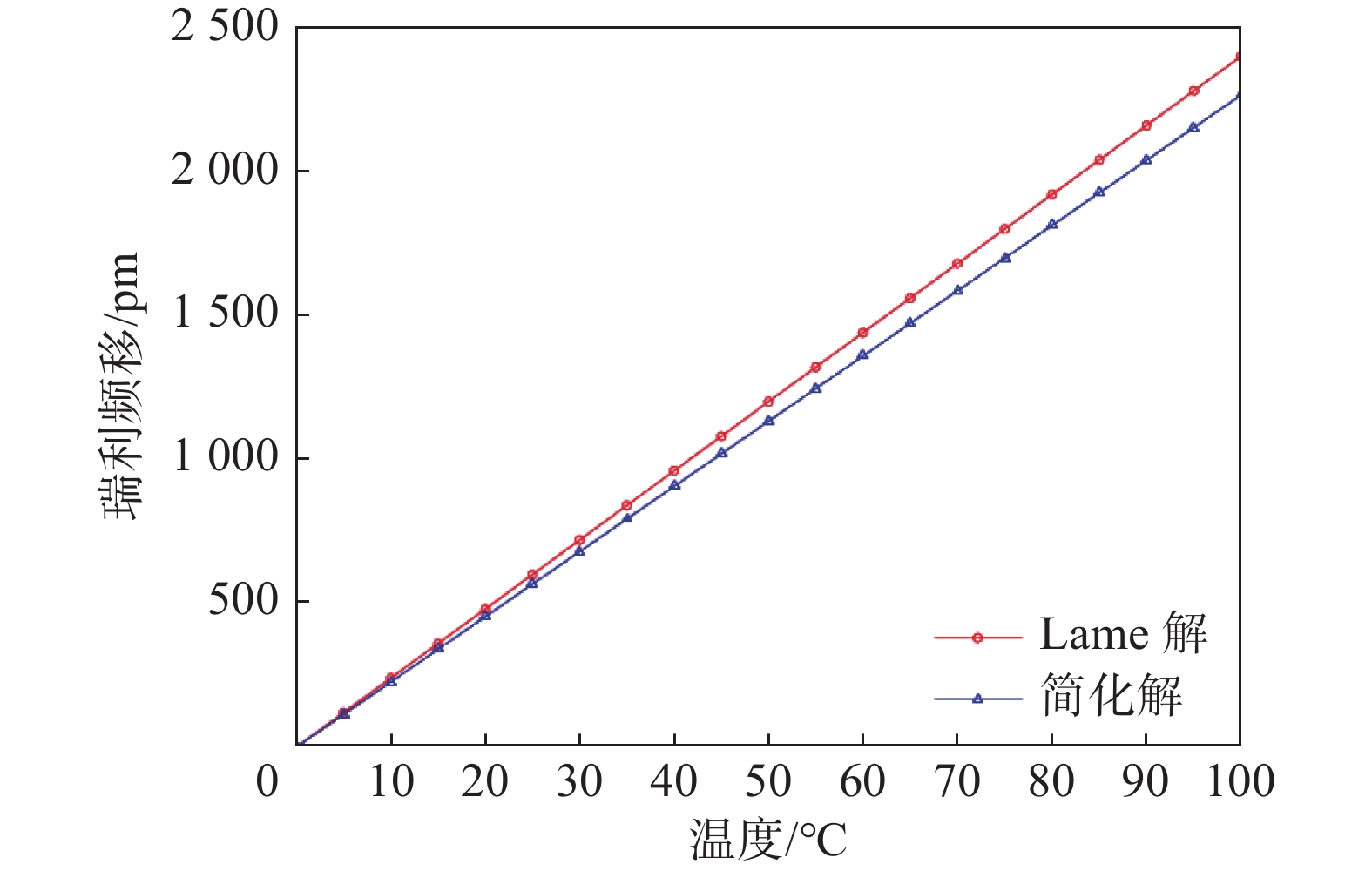

 图 3 光纤瑞利频移随温度变化趋势 Figure 3 Rayleigh frequency shift of optical fiber varies with temperature

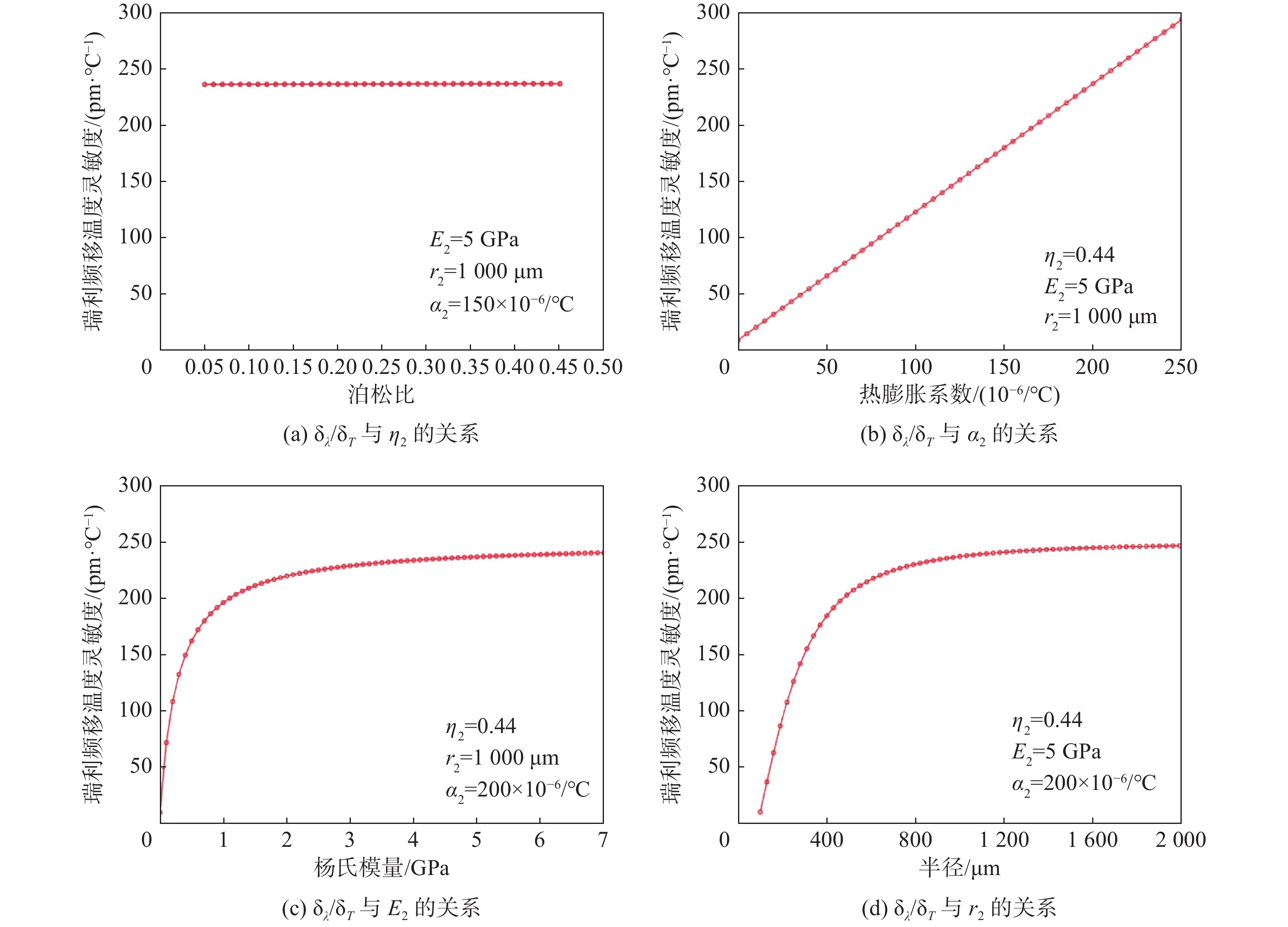

 图 4 瑞利频移温度灵敏度（ $\text{δ}_ \lambda / \text{δ}_T$ ）与 2 层外涂层参数（ ${\eta }_{2}$ ， ${\alpha }_{2}$ ， ${E}_{2}$ ， ${r}_{2}$ ）的关系 Figure 4 Relationship between temperature sensitivity of Rayleigh frequency shift（ $\text{δ}_ \lambda / \text{δ}_T$ ）and the external second coating parameters （ ${\eta }_{2}，{\alpha }_{2}，{E}_{2}，{r}_{2}$ ）
3 结　论
